ESP8266 WiFi Time lapse Camera

ESP8266 WiFi Image Viewer

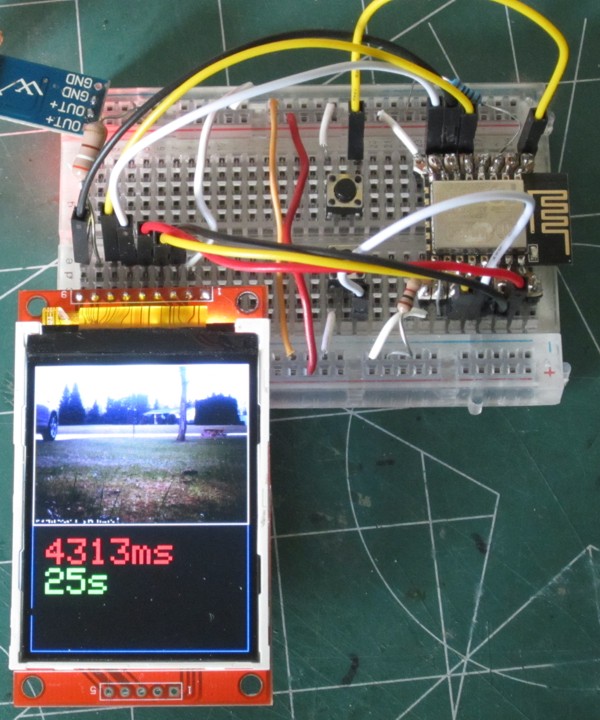

Simply put, this pulls down a jpeg from a web server and displays it on a ILI9341 every 30 seconds. I made this as a companion to my ESP8266 Camera, but it could also made a good WiFi attached slide show display.

ESP8266 WiFi Image Viewer by James Eckert

Primary Components

ESP8266-12E hookup

  • Standard ESP connections for normal operation

ILI9341 tft hookup

ILI9341ESP8266
SDO/MOSOGPIO12
LED
SCKGPIO14
SDI/MOSIGPIO13
DC/RSGPIO5
ResetGPIO2
CSGPIO4
GND
VCC
  • LED---390ohm---VCC
  • GND---GND
  • VCC---VCC
ILI9341 to ESP826612E Conections by James Eckert
