ESP8266 WiFi ImageViewer2

NEW ESP8266 WiFi Image Viewer

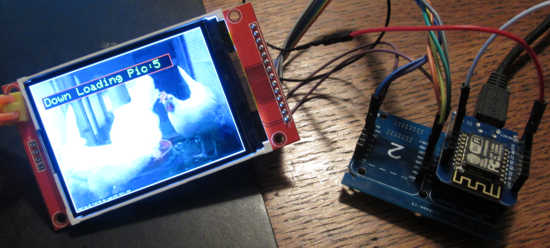

I created this because the original stopped working , it is much faster using JPEGDecoder and TFT_eSPI Libraries.

A PHP file on a webserver resizes the image files and serves them up at a given quality. ESP8266 WiFi Image Viewer2 by James Eckert

Primary Components

ESP8266-12F/WeMos D1 hookup

  • Standard ESP connections for normal operation

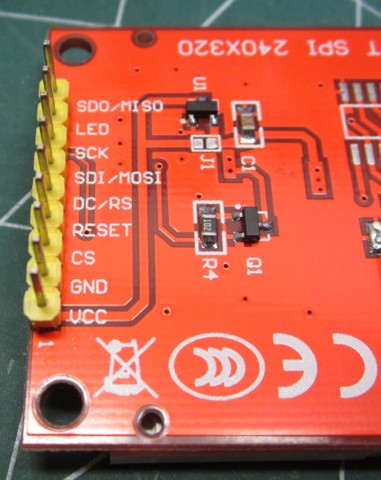

ILI9341 tft_eSPI hookup

ILI9341ESP8266
SDO/MOSOD6
LED3.3v
SCKD5
SDI/MOSID7
DC/RSD3
ResetD4
CSD8
GNDGND
VCC3.3v
  • LED---390ohm---VCC
ILI9341 to ESP826612E Conections by James Eckert
